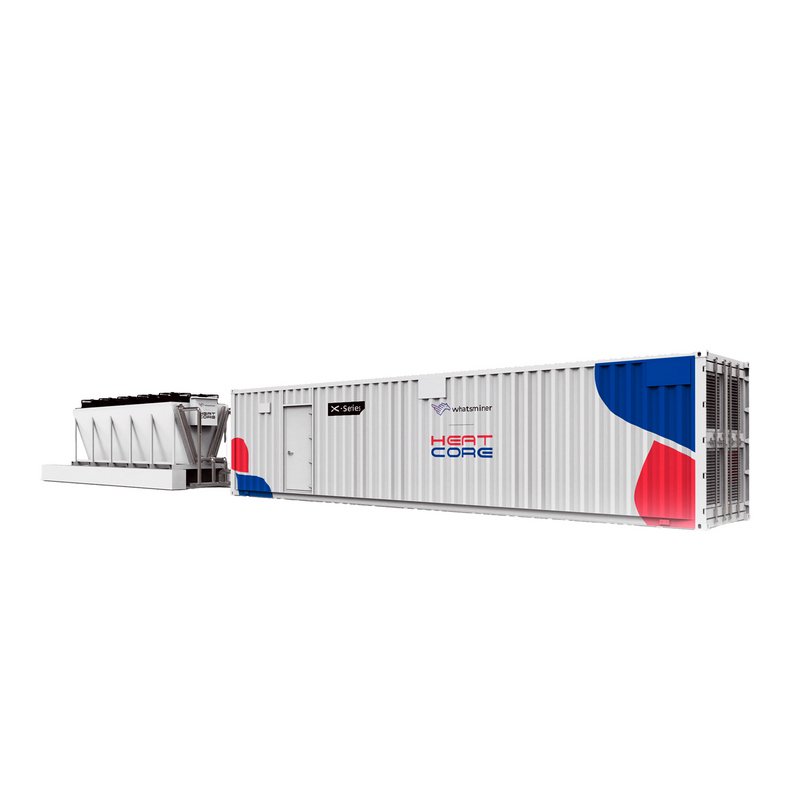

Whatsminer XS2400 Hydro-cooling container
$117,800
| Function: | Hydro-cooling container |
| Specifications: | 1Set | 2488KW | 240 Rack Space |
Scalability & High-Density Space.
It features a modular design for easier production, repair, and future expansion.

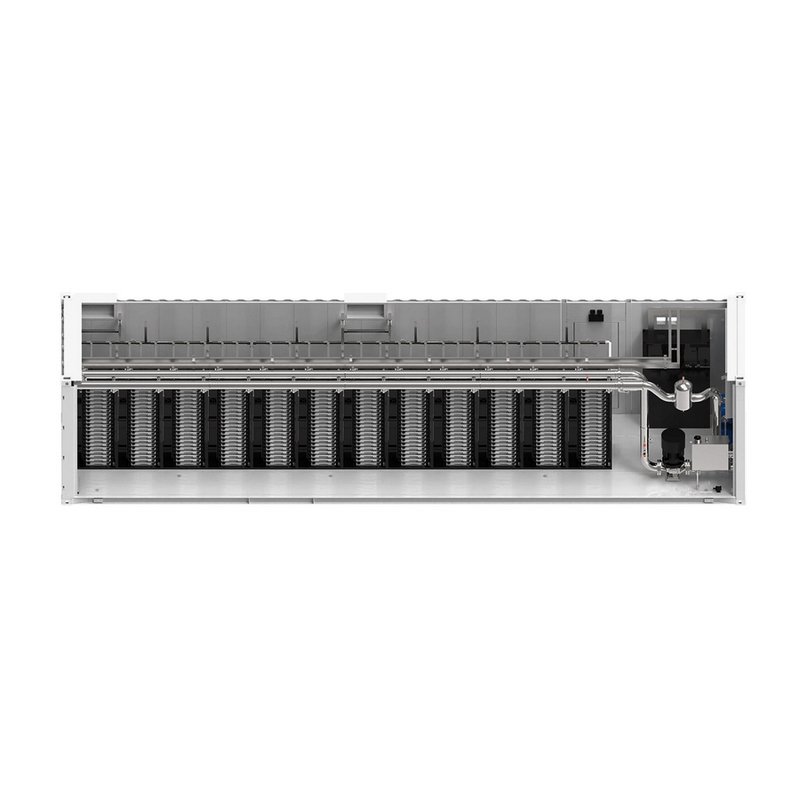

Each N-Rack integrates 2U Server Slots, PDU, Manifold, Switch, and supports up to 20 servers.
Premium Quality for Reliability.
With the rack constructed from Q235 steel, manifold from 304 Stainless steel, branch hoses from EPDM material, the it rack is designed for premium high strength and corrosion- resistance.
Stable Thermal & Pressure Control.
Innovative PLC-based control logic ensures automatic coolant replenishment, temperature fluctuation (within ±2 °C / ±4 °F)) and supply-return pressure difference (within 1.0 bar) control, guaranteeing stable server operation.
O&M with Visibility & Serviceability.
Zero or Reduced Water Consumption.
Environmentally sustainable and ideal for regions with water scarcity or strict regulations.
Description
| Model | XS2400 | ||
| Container‘s Capacity | 240 units | ||
| Main Components Included | Smart Control System(CDU)/Switchboard/12*IT Rack/Dry Cooler | ||

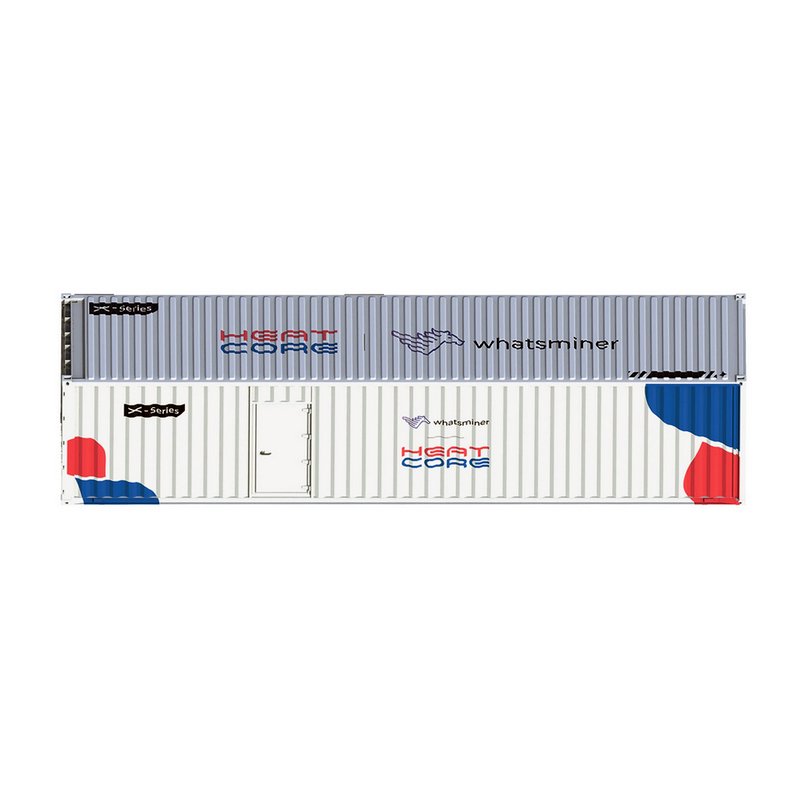

| Container‘s Size | 40ft-HQ | ||
| Container‘s Net Weight/Operating Weight | 12000kg/19200kg | ||
| Input Power | 3-Ph/PE 380-480V 50/60Hz | ||
| Max. Power Consumption | 2488kW | ||
| Max. Output Temperature | 80°C(176 °F) (after plate heat exchanger, up to 75°C/ 167 °F) | ||
| Thermal Efficiency | 95% | ||
| Heat Exchangers | Customized on Demand | ||
| Dry Coolers | Customized on Demand | ||
| Pipe System | Customized on Demand | ||
| Electrical Code for the US | NFPA 70, UL508A, UL2755, UL50E, UL891 | ||
| Electrical Code for the EU | IEC 61439, IEC 60204 | ||
| Certification | CE or CSA Field Evaluation |
Additional information
| Weight | 12000 kg |
|---|---|
| Dimensions | 12192 × 2438 × 2591 mm |
| Condition | NEW |
