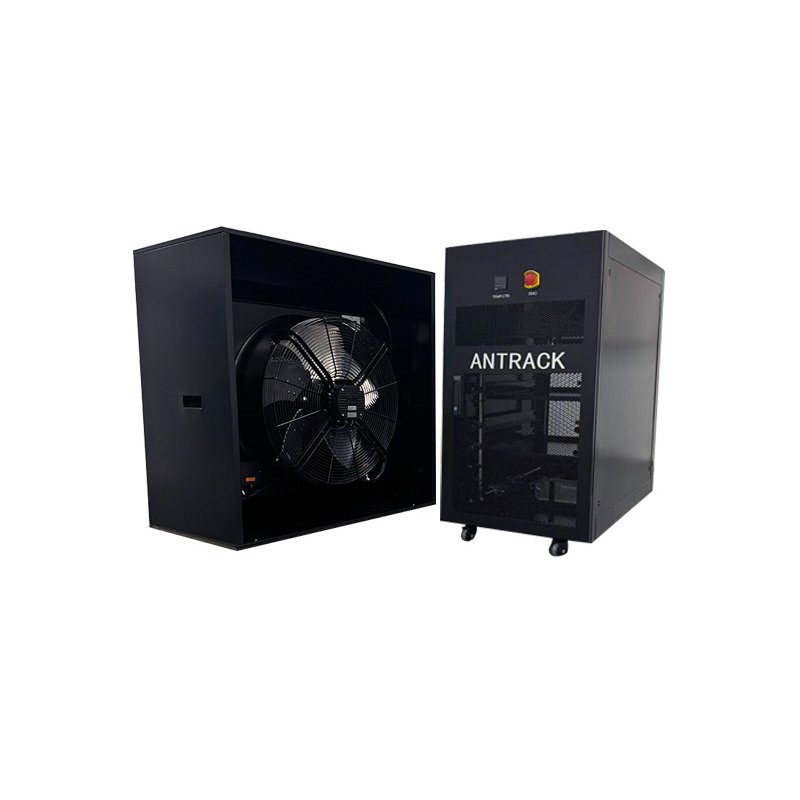

ANTRACK V2-EC2-DT
ANTRACK V2-EC2-DT - Image 2
ANTRACK V2-EC2-DT - Image 3
Mining Containers

ANTRACK V2-EC2-DT

$2,510

Function:Hydro-cooling container
Specifications:1Set | 24KW | 4 Standard Hydro-cooling ANTMINER
SKU: antrack-v2-ec2-dt Category: Brand:

Description

Specifications



Product GlanceValue
ModelANTRACK
VersionV2-EC2-DT
Capacity4 units ANTMINER (Hydro) or
4 units ANTMINER (U2 Hydro) or
2 units ANTMINER (U3 Hydro)
Maximum load,kW24



Detailed CharacteristicsValue

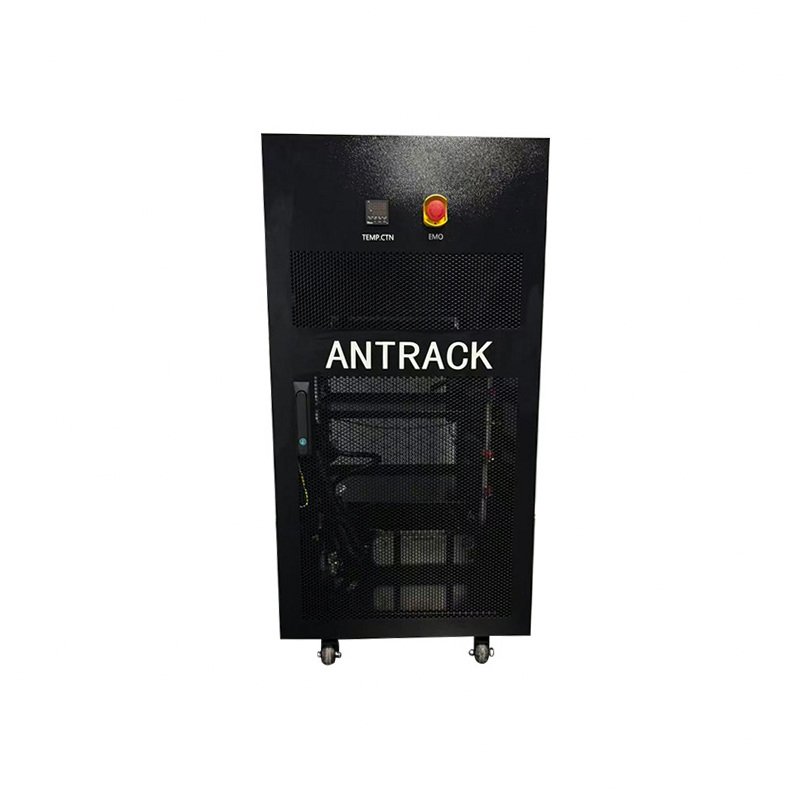

Part 1: Mining Cabinet
Hardware Configuration
Size (Length*Width*Height), mm (without package)1260*600*1185
Size (Length*Width*Height), mm (with package)1320*760*1320
Net weight, kg (without package)138
Gross weight, kg (with package)195
Network connection modeRJ45 Ethernet 10/100M
Power Supply
Power supply AC Input voltage, Volt(1-1)380~415V AC
Power supply AC Input Frequency Range, Hz50~60
Power supply AC Input current, Amp(1-2)63
Water pump
Rated power, W450
Noise, dBA@1m60
Lift, m19
Size (Length*Width* Height), mm360*210*268

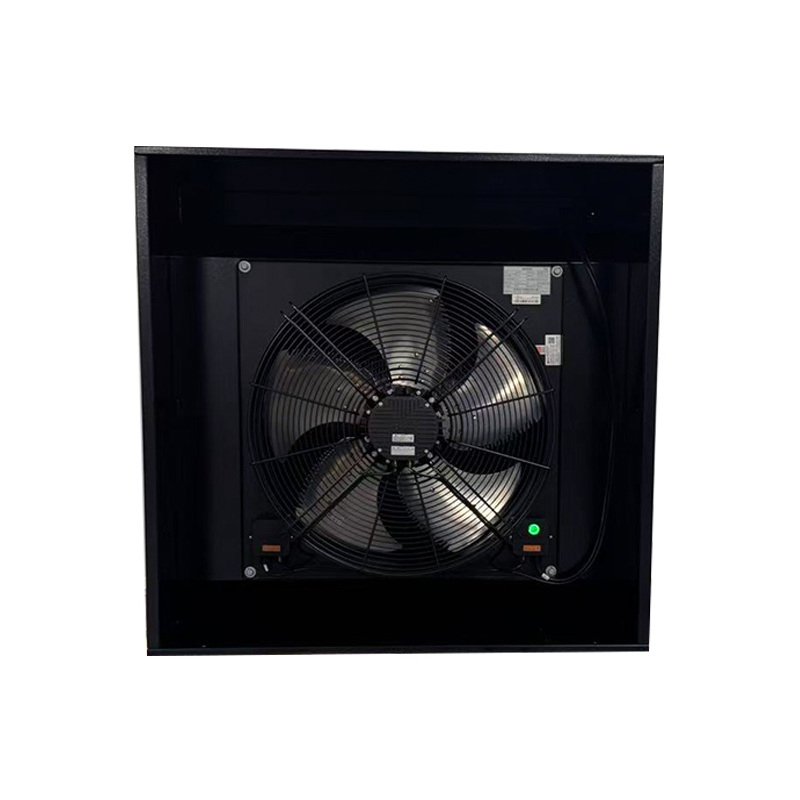

Part 2: External Cooler(1-3)
Hardware Configuration
Size (Length*Width*Height), mm (without package)1197*650*1177
Size (Length*Width*Height), mm (with package)1320*760*1320
Net weight, kg (without package)112
Gross weight, kg (with package)165
Power supply
Power supply AC input voltage, Volt(1-1)380~415V AC
Power supply AC input frequency range, Hz50~60
Maximum power supply AC input current, Amp(1-2)63
Fan
Rated power, W750
Noise, dBA@1m64
Size (Length*Height*Thickness), mm850*850*305
Environment Requirements
Ambient temperature, °C-20~40
Water flow, L/min32.0~40.0
Water pressure, bar≤3.5
Working fluid(1-4)Organic Antifreeze (10%)
Installation distance, m(1-5)5
Liquid PH7.8~8.5
Storage temperature, °C-20~70
Operation humidity(non-condensing), RH10~90%

Additional information

Weight138 kg
Dimensions1320 × 760 × 1320 mm
Condition

NEW
