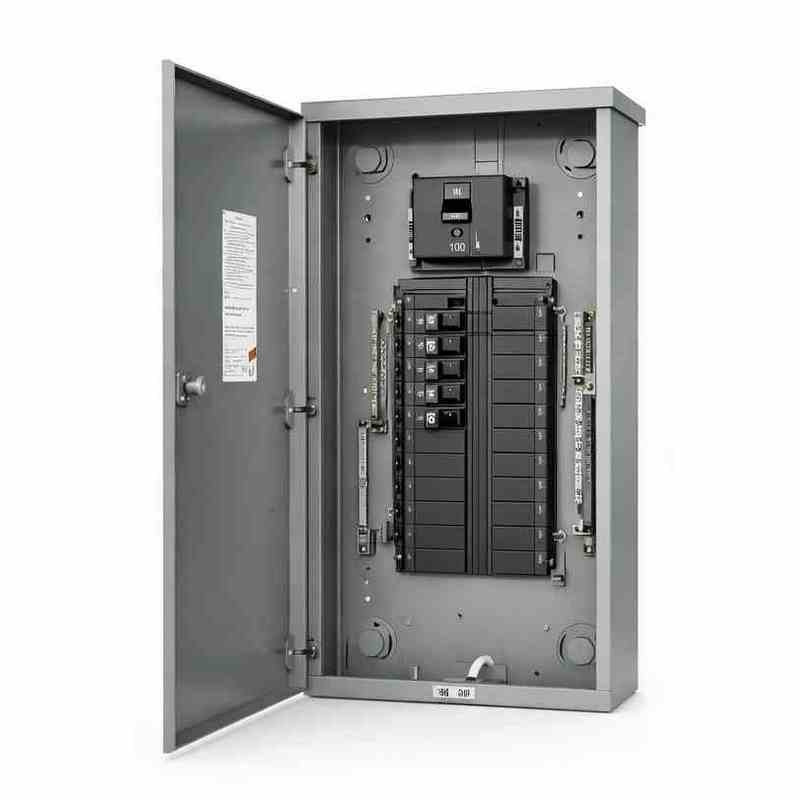

Power Distribution Panel (Load Center) – 208Y/120V AC 3PH – 100A Main Breaker
$30,290
The 3P-MCB-100A-208Y-120V-N3R power distribution panel provides a secure and flexible method for tapping into and distributing electrical power independently of the work area. Line-in cables are customer supplied, with enclosure knockouts provided for convenient top or bottom feed installation.
Description
| Line In: Customer Provided | UL Listed Power-Distribution Equipment |
| Max Primary OCP: 100A @ 208Y/120V AC | NEMA 3R Indoor or Outdoor Use |
| Alternate Voltage Configurations: 240/120V Delta AC and 240V Delta AC available upon request. | Form Factor: Rectangular, Slim-Profile Enclosure with Lockable Door |
| Panel: 100A 208Y/120V AC, 3-Phase, 4-Wire, Main Breaker Panelboard, NEMA 3R | |
| Spaces: 27 | |
| Breakers: (1) 100A 3-Pole Main Circuit Breaker; No Branch Breakers Supplied | |
| Panel Type: Main Breaker Load Center | |
| Breaker Type: Bolt-on | |
| Feed Type: Top or Bottom | |
| Interrupting Rating: 27 kA @ 208Y/120V AC | |
| Operating Temperature: 40°C | |
| Materials: Galvannealed Steel Enclosure, Copper Conductors | |
| Bus Material: Copper | |
| Ground Bar Material: Aluminum (Bolted) |
Additional information
| Weight | 81 kg |
|---|---|
| Dimensions | 772 × 362 × 118 mm |
| Condition | NEW |
