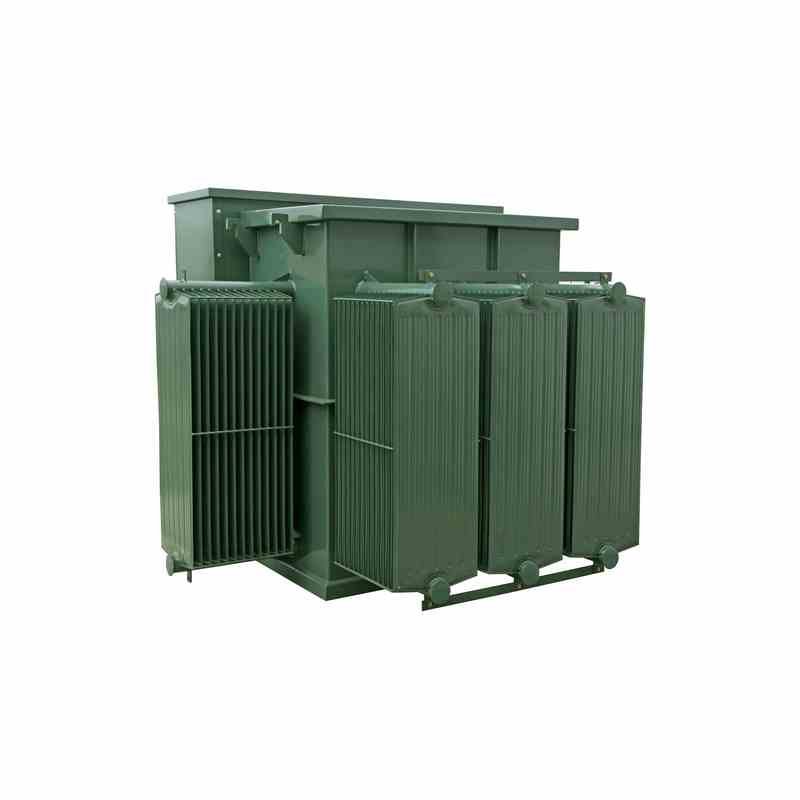

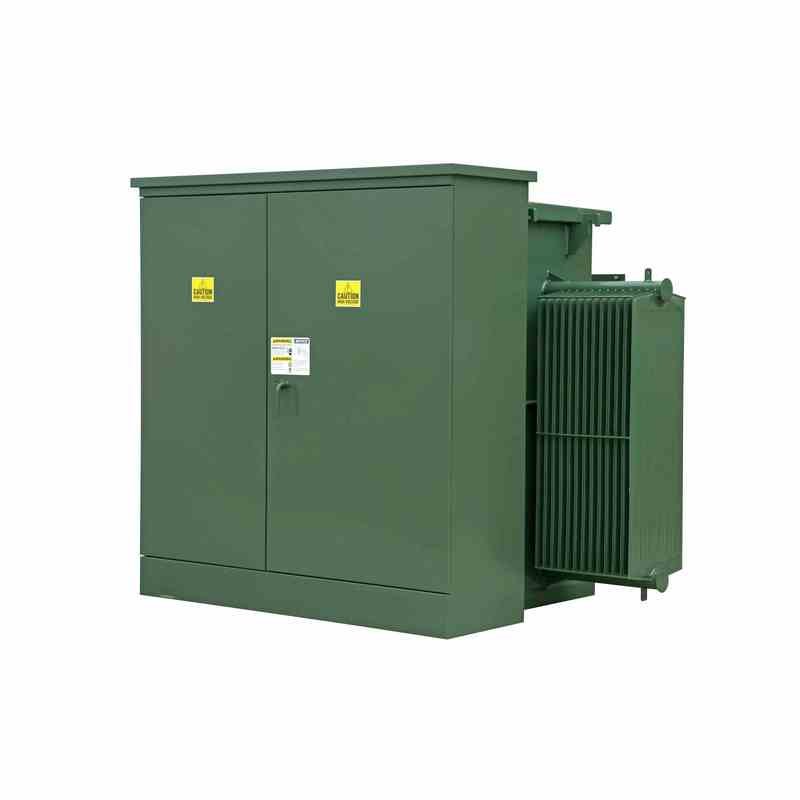

3MVA Transformer 13800V / 480Y277
$251,360

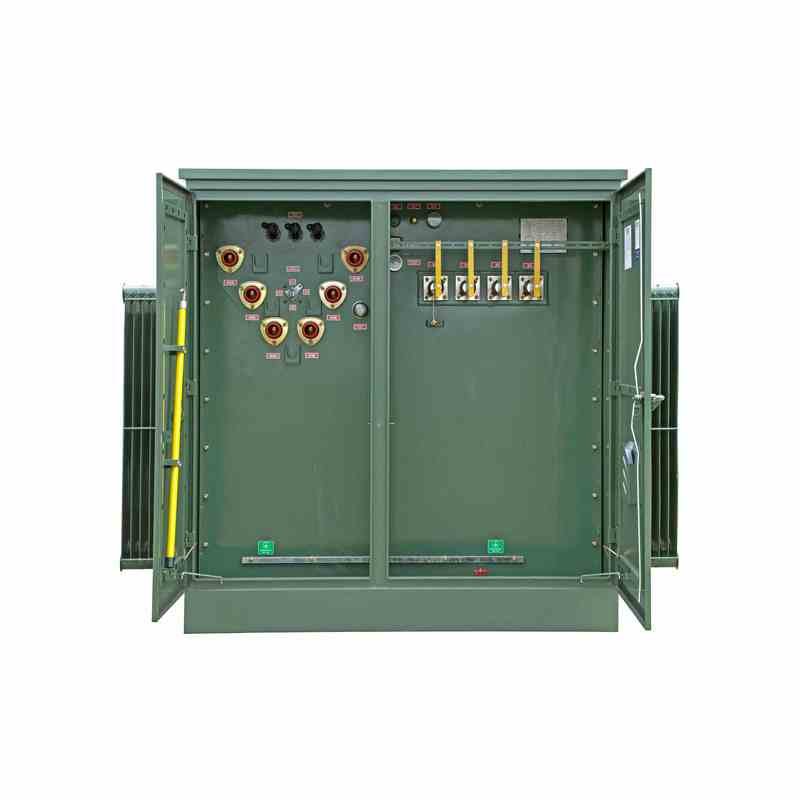

With a transformer rating of 3 MVA (3000 KVA), the industrial transformer features a dual rated primary voltage of three-phase 13800V Delta and a secondary voltage of three-phase 480Y/277 V Wye. An input voltage switch allows the transformer to be switched between primary voltages. The unit has a primary loop feed for single installations and dead-front primary connections. This transformer features a 5-position tap changer with two, +/- 2.5% taps above and two, +/- 2.5% taps below to allow small changes for voltage.
Description
| Transformer Type: Pad Mounted, Compartmental-Type | Meets/Exceeds DOE 2016 Efficiency Ratings |
| Transformer Configuration: Liquid Filled Pad Mounted | Complies with ANSI / IEEE C57.12.00 |
| Transformer Feed Type: Loop Feed | Complies with ANSI / IEEE C57 12.28 |
| Phase: Three Phase | Complies with ANSI / IEEE C57 12.34 |
| Capacity: 3 MVA (3000 KVA) | Complies with ANSI / IEEE C57.12.70 |
| Vector Group: DYN1 | Complies with ASTM D3487 |
| Primary Voltage: 13800V | Pentahead Entry Assembly |
| Primary Voltage Class: 15 kV Class | High-Fire Point Natural Ester Insulating Fluid |
| Primary Phasor: Delta | Non-PCB Insulating Fluid |
| Primary BIL: 95 KV | Tamper Proof Housing |
| Secondary Voltage: 480Y/277 | Hinged Front Compartment Doors, Pad Lockable |
| Secondary Voltage Class: 1.2 kV Class | Hot Stick Included, HV Door Mount |
| Secondary Phasor: Wye-N | Load Break Switch Location: High Voltage (HV) Front Compartment |
| Secondary BIL: 30 KV | Efficiency %: 98.00% |
| Frequency: 60 Hz | Based on transformer operating at 50% of nameplate base kVA. |
| Temperature Rise: 65°C | Fluid Capacity: 1250 Liters |
| Cooling Class: KNAN; Self-Cooled | Load Losses Based on 85°C Reference Temp. |
| Forced Air (Fans): None | No Load Loss (in watts)): +/- 5,985W |
| Tap Changer: 5-position Tap Changer | Full Load Loss (in watts) at 100%: +/- 24,402W |
| Tap Qty: (2) FCAN Above Taps, (2) FCBN Below Taps | Total Load Loss (in watts) at 100%: +/- 30,387W |
| Tap %: 2.5% | Sound Level: 63 dBA |
| Tap Changer Switch Location: High Voltage (HV) Front Compartment | Total Losses at 55°C LL Temp.& 20°C NL Temp. |
| Impedance (Typical): 5.0-7.5% Typical, Target 5.75% | Total Load Loss (in watts) at 50%: +/- 12,090W |
Additional information
| Weight | 5705 kg |
|---|---|
| Dimensions | 2286 × 2032 × 2108 mm |
| Condition | NEW |
