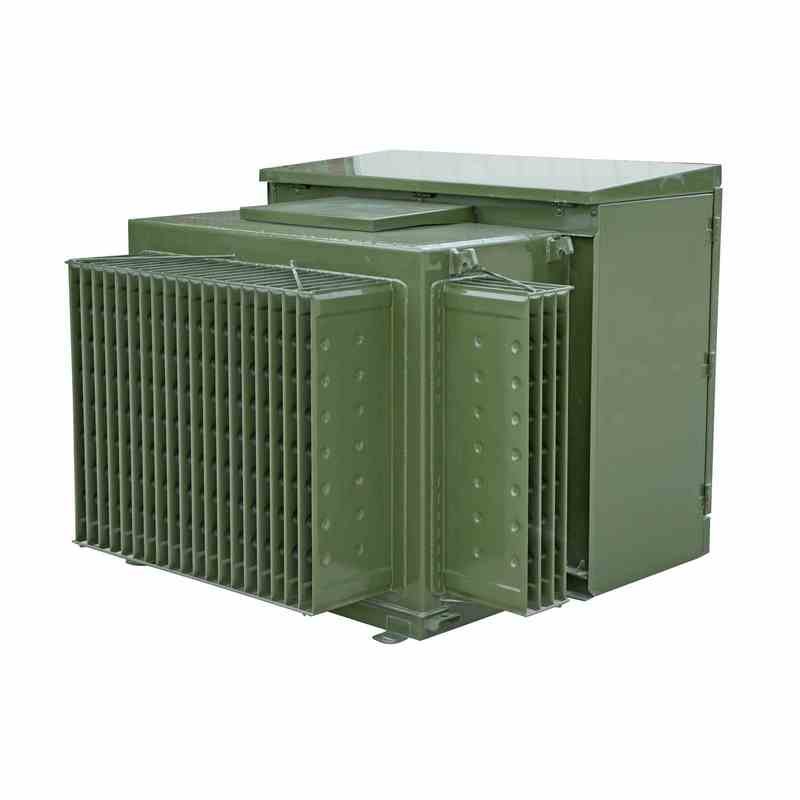

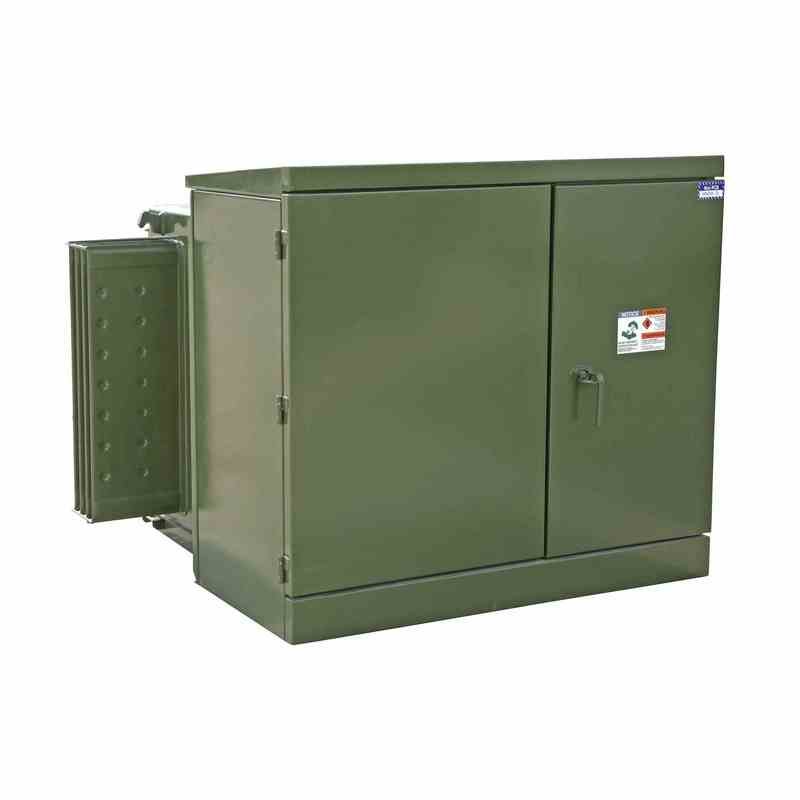

3MVA Transformer 11000V / 415Y240
$153,180
With a transformer rating of 3000 KVA (3 MVA) / 3360 KVA (3.36 MVA), the industrial transformer features a dual rated primary voltage of three-phase 11000V Delta and a secondary voltage of three-phase 415Y/240 V Wye. An input voltage switch allows the transformer to be switched between primary voltages. The unit has a primary loop feed for single installations and dead-front primary connections.
Description
| Transformer Type: Pad Mounted, Compartmental-Type | Meets/Exceeds DOE 2016 Efficiency Ratings |
| Transformer Configuration: Liquid Filled Pad Mounted | Complies with ANSI / IEEE C57.12.00 |
| Transformer Feed Type: Loop Feed | Complies with ANSI / IEEE C57 12.28 |
| Phase: Three Phase | Complies with ANSI / IEEE C57 12.34 |
| Capacity at 55°C: 3 MVA (3000 KVA) | Complies with ANSI / IEEE C57.12.70 |
| Capacity at 65°C: 3.36 MVA (3360 KVA) | Load Break Switch Location: High Voltage (HV) Front Compartment |
| Vector Group: DYN1 | Complies with ASTM D3487 |
| Primary Voltage: 11000V | Pentahead Entry Assembly |
| Primary Voltage Class: 15 kV Class | High-Fire Point Natural Ester Insulating Fluid |
| Primary Phasor: Delta | Non-PCB Insulating Fluid |
| Primary BIL: 95 KV | Tamper Proof Housing |

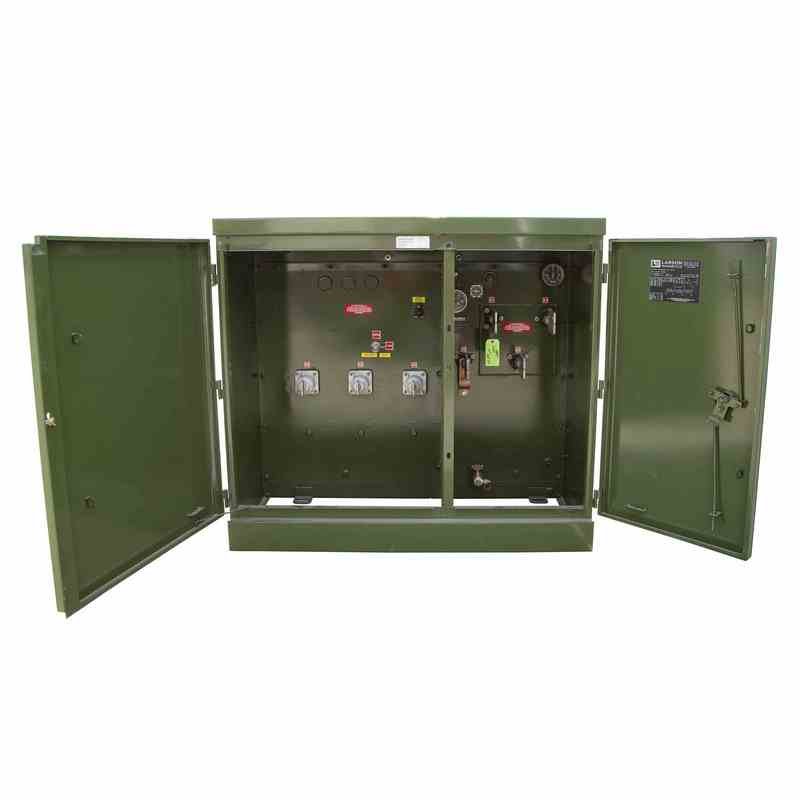

| Secondary Voltage: 415Y/240 | Hinged Front Compartment Doors, Pad Lockable |
| Secondary Voltage Class: 1.2 kV Class | Sound Level: 63 dBA |
| Secondary Phasor: Wye-N | Efficiency %: 98.00% |
| Secondary BIL: 30 KV | Based on transformer operating at 50% of nameplate base kVA. |
| Frequency: 60 Hz | Fluid Capacity: 1250 Liters |
| Temperature Rise: 55°C / 65°C | Load Losses Based on 85°C Reference Temp. |
| Cooling Class: KNAN; Self-Cooled | No Load Loss (in watts)): +/- 5,985W |
| Forced Air (Fans): None | Full Load Loss (in watts) at 100%: +/- 24,402W |
| Tap Changer: 5-position Tap Changer | Total Load Loss (in watts) at 100%: +/- 30,387W |
| Tap Qty: (2) FCAN Above Taps, (2) FCBN Below Taps |
Additional information
| Weight | 7500 kg |
|---|---|
| Dimensions | 2286 × 2032 × 2108 mm |
| Condition | NEW |
